Spartan® Wedge Clamp

A schematic representation of a clamp mechanism. The clamp utilizes a screw and lever arm for clamping. The weight of the clamp is specified as 40 grams.
A technical drawing of a lever clamp, showing its dimensions and specifications. The total length is 98mm, with a minimum handle length of 22mm and a maximum handle length of 40mm.
A technical drawing of a burst plug, showing its dimensions and specifications. The total length is 74mm, with a head diameter of 20mm and a threaded section of 14mm.

Spartan Wedge® Clamp: applications

Primarily developed for use in metal finishing plants as a special clamping tool. Capable of withstanding the corrosive attack of chemicals used within the industry. Our Spartan® Wedge Clamp secures hollow sections from the inside, enabling the whole length of the section to be anodised or painted. It adjusts to suit jigs and sections of different sizes, ensuring secure fixing and good electrical contact. As the clamp fits inside the section, there are no external clamping marks, eliminating the need for wasteful trimming.

Spartan Wedge® Clamp: description

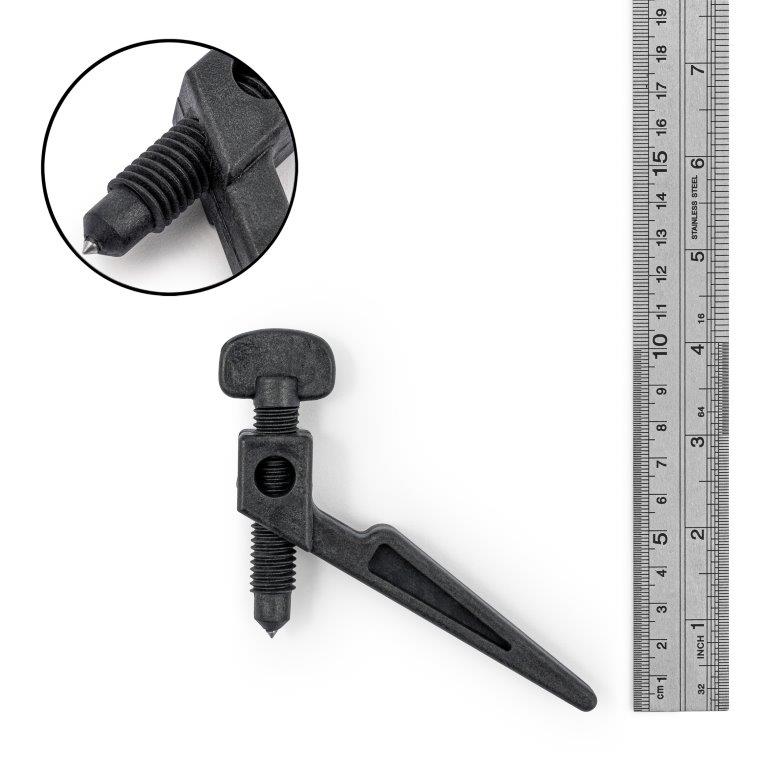

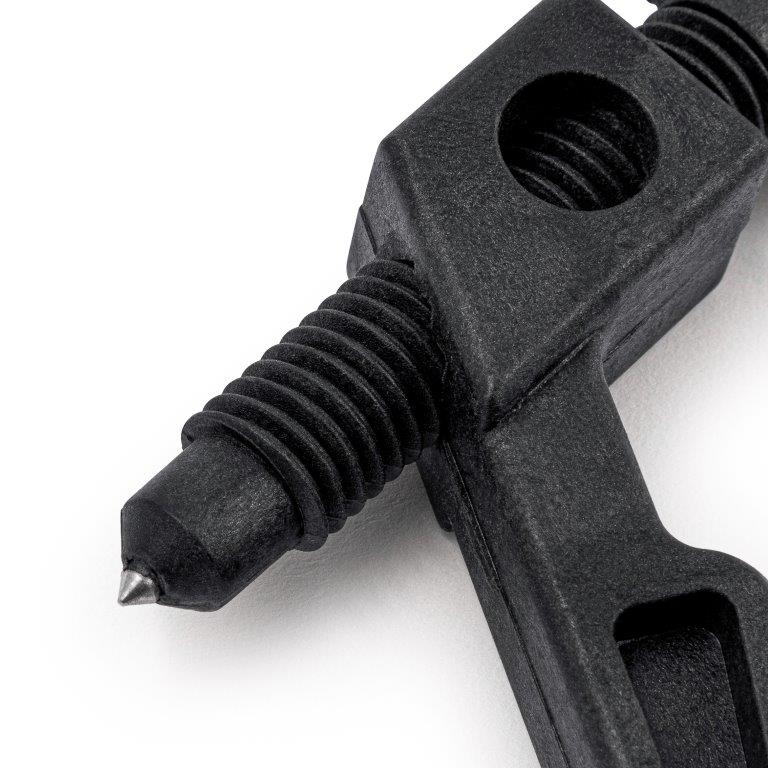

We can add a tip if you require it, to give extra resistance to slip. Tips can be supplied in titanium, zirconium or ceramic.

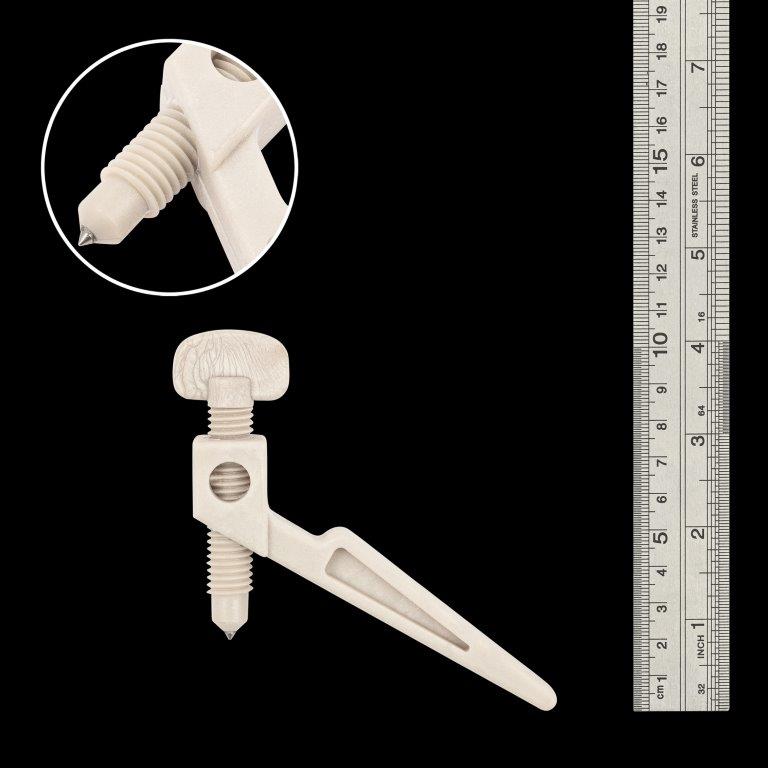

Our Spartan Wedge® Clamp is moulded in glass-filled Noryl for use in anodising, giving a maximum usable temperature of 105°C. Or it can be moulded in glass-filled Radel, for use in painting and electro-brightening, at temperatures of up to 220°C.

Spartan Wedge® Clamp: main features

  • Fast secure fixing
  • No external clamping marks
  • No wasteful trimming
  • Reduced current consumption and effluent costs
  • Versions for anodising, painting and electro-brightening.

Download our data sheet as a PDF:

How to order Spartan® Wedge Clamps

Call 01384 563 200 to order directly from us – the manufacturers.
