Spartan® Euro Clamps: applications
Primarily developed for use in metal finishing plants as a G clamp tool, our Spartan® Euro Clamps are capable of withstanding the corrosive attack of chemicals used within the industry.
Spartan® Euro Clamps: description
We mould our Spartan® Euro Clamps in glass-filled Noryl for use in anodising; giving a maximum usable temperature of 105°C.
We can also mould it in glass-filled Radel, for use in painting and electro-brightening and at temperatures up to 220°C.

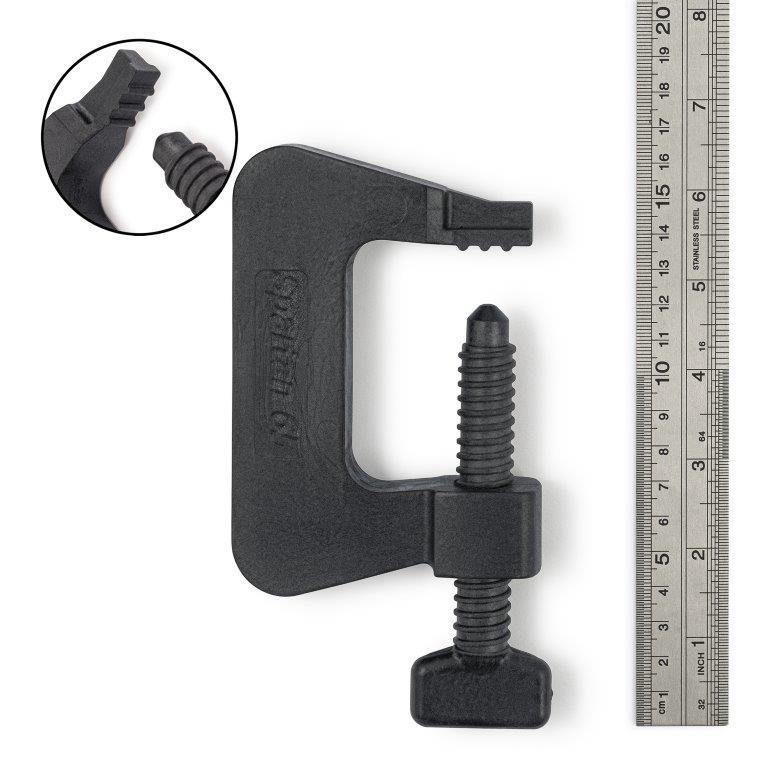

Spartan® Euro Clamps come plain tipped as standard. We can supply tips for Spartan® Euro Clamps in titanium, increasing grip and reducing witness marks. Or in ceramic or zirconium for electro-brightening and two-step colour processes.
The clamping force is provided by a screw with a coarse thread. A version with a fine thread is also available.
| Product | Mouth opening (A) | Mouth depth from centre line of screw (B) | Screw diameter (C) | Weight – each | Pattern |
| Spartan® Euro Clamp 40 | 40mm | 32mm | 12.7mm | 70g | Round |
| Spartan® Euro Clamp 45 | 45mm | 30mm | 14mm | 91g | Square |
| Spartan® Euro Clamp 50* | 50mm | 38mm | 14mm | 104g | Round |
| Spartan® Euro Clamp 60 | 60mm | 38mm | 14mm | 140g | Square |
| Spartan® Euro Clamp 65 | 65mm | 38mm | 16mm | 150g | Square |
| Spartan® Euro Clamp 70 | 70mm | 38mm | 16mm | 150g | Square |
*Our Spartan® Euro Clamp 50 can be supplied with an M16 coarse thread screw, which has a 3mm groove to help reduce liquid pooling.
Would you like a data sheet for our Spartan® Euro Clamps?
> Download Spartan Euro Clamps data sheet [PDF opens in a new tab]
How to order
Call 01384 563 200 to order directly from us – the manufacturers.
