Malleable Iron Reducing Female Elbow 90°

CMT Engineering Ltd
90 Corngreaves Road
Cradley Heath, West Midlands
B64 7DA, United Kingdom

Malleable Iron Reducing Female Elbow 90°

This Malleable Iron Reducing Female Elbow 90° is a threaded pipe fitting designed to change the direction of a pipe run by 90 degrees, while transitioning between two different pipe sizes. It is used across a wide range of applications, including fire protection, plumbing, heating and ventilation systems.

Manufactured by Jinan Meide from high-quality malleable iron, this reducing elbow fitting is produced to the relevant international standards BS EN 10242 and BS EN 10143 and is BSI kitemarked. Male and female taper threads are formed to ISO 7.1, helping to ensure a secure, reliable joint.

We supply reducing elbows in self-colour or hot dip galvanised finishes, giving you flexibility for different installation requirements.

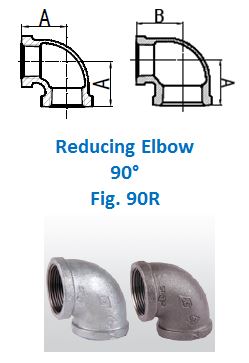

The image shows a technical drawing and photographs of a reducing elbow pipe fitting with a 90-degree angle, labeled as "Fig. 90R." The technical drawing includes two views of the elbow, labeled "A" and "B," showing the dimensions and shape of the fitting. Below the drawing, there are two photographs of the actual reducing elbow fittings, one in a metallic finish and the other in a darker finish. The text "Reducing Elbow 90° Fig. 90R" is prominently displayed in blue between the drawings and the photographs.

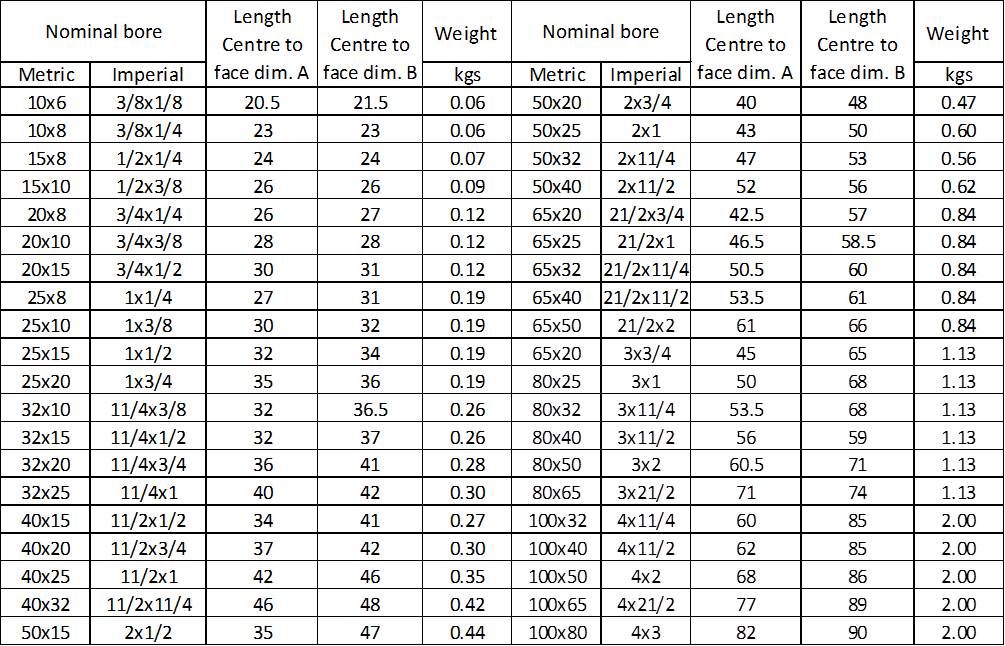

A detailed table showing various nominal bore sizes in both metric and imperial units, along with corresponding length center-to-face dimensions (A and B) and weights in kilograms. The table is divided into two sections, each listing different nominal bore sizes and their respective measurements and weights.

To download our data sheet as a PDF, please click the link below.

Reducing Female elbow fig. 90R
