Malleable reducing hex nipple

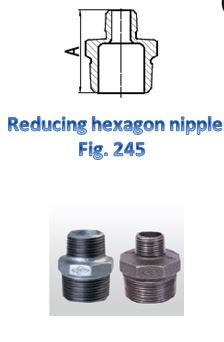

Diagram and photographs of a reducing hexagon nipple, labeled as Fig. 245. The diagram shows a cross-sectional view of the nipple with a hexagonal shape in the middle and threaded ends. Below the diagram, there are two photographs of the actual reducing hexagon nipples, one in a silver finish and the other in a darker finish.

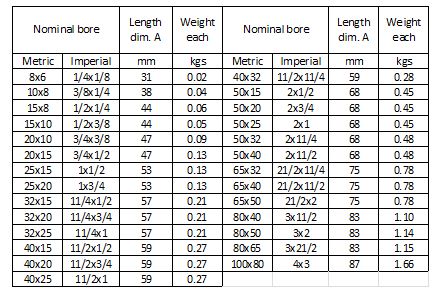

A table showing the nominal bore, length dimension A, and weight for various metric and imperial sizes. The table is divided into two sections, each listing different sizes and corresponding measurements. The first section includes sizes from 8x6 to 40x25, with length dimensions ranging from 31 mm to 59 mm and weights from 0.02 kgs to 0.27 kgs. The second section includes sizes from 40x32 to 100x80, with length dimensions ranging from 59 mm to 87 mm and weights from 0.28 kgs to 1.65 kgs.

To download our data sheet as a PDF, please click the link below.

Reducing hex nipples fig. 245
