BS EN10241 90 deg elbows, equal tees, crosses

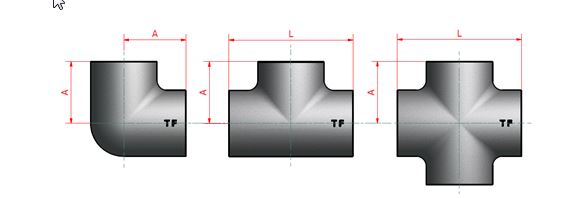

A technical drawing illustrating three types of pipe fittings: a 90° elbow, a tee fitting, and a cross fitting. Dimensions "A" and "L" are indicated for each fitting.

Weights and dimensions chart

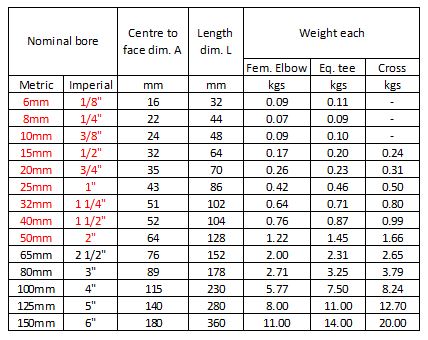

A table of pipe fitting dimensions and weights, specifying the nominal bore, centre to face dimension A, length dimension L, and weight per piece for female elbows, equal tees, and cross fittings.

To download our data sheet as a PDF, please click the link below.
