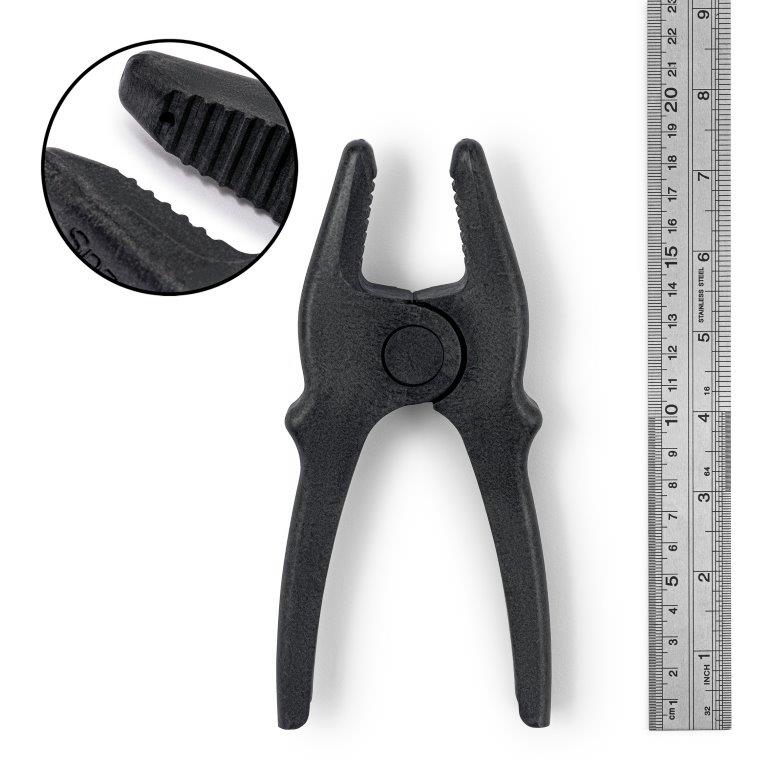

Heavy 40

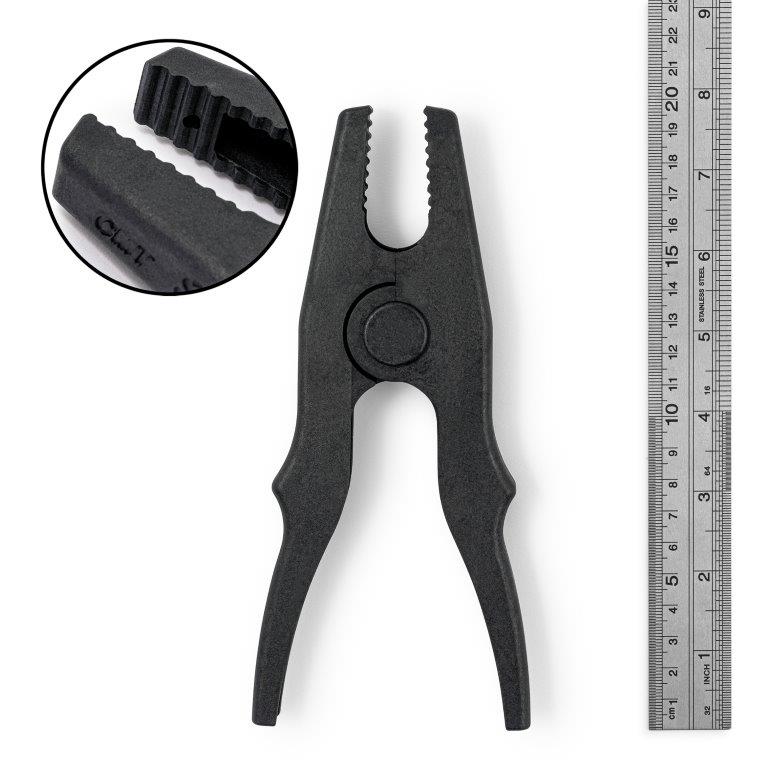

Short Jaw

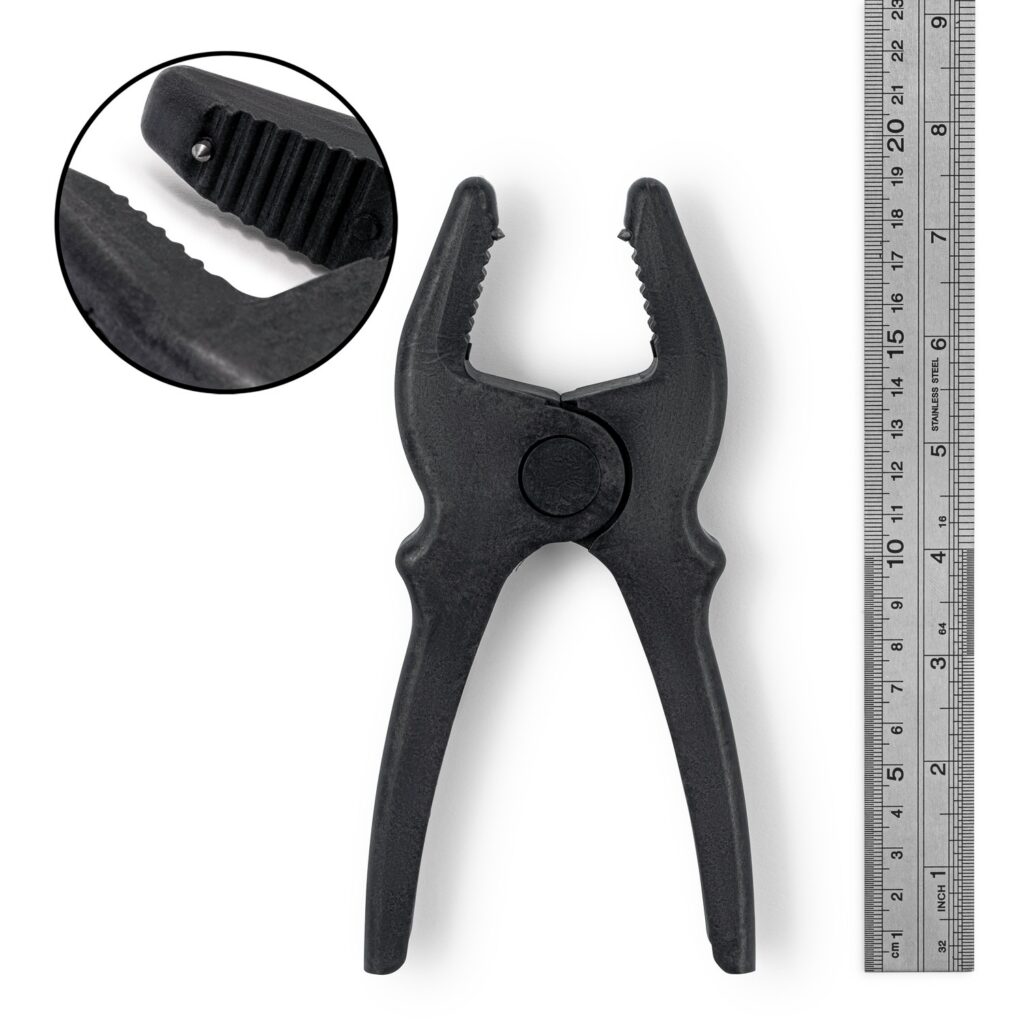

Heavy 55, with tip
Heavy 40
Spartan® Plier Clamps: applications
Primarily developed for use in metal finishing plants as a fast clamping tool, Spartan® Plier Clamps by CMT Engineering are capable of withstanding the corrosive attack of chemicals used within the industry.
Spartan® Plier Clamps: description
Spartan® Plier Clamps are moulded in glass-filled Noryl for use in anodising, giving a maximum usable temperature of 105°C.
Or they can be moulded in glass-filled Radel, for use in electro-brightening and painting, and at temperatures of up to 220°C.
If you wish, we can add tips to Spartan® Plier Clamps, to minimise marking of the components and to give extra resistance to slip. We can supply the tips for Spartan® Plier Clamps in titanium, zirconium or ceramic.
The clamping force for Spartan® Plier Clamp Heavy 40 and Spartan® Plier Clamp Heavy 55 is provided by a stainless steel torsion spring. The other Spartan® Plier Clamps have a stainless steel leaf spring.

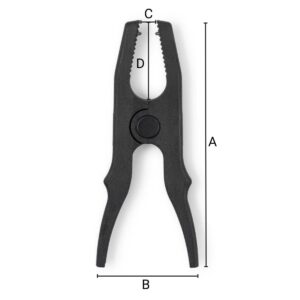

| Product | Overall length (A) | Width across handles (B) | Width of jaw, tip to tip when open (C) | Width of jaw, tip to tip when closed (C) | Depth of jaw from tips (D) | Weight – each |
| Spartan® Plier Clamp Heavy 40 | 185mm | 85mm | 40mm | 22mm | 45mm | 150g |
| Spartan® Plier Clamp Heavy 55 | 185mm | 85mm | 55mm | 28mm | 45mm | 150g |
| Spartan® Plier Clamp Parallel Long Jaw | 220mm | 88mm | 55mm | 12mm | 56mm | 127g |
| Spartan® Plier Clamp Short Jaw | 195mm | 85mm | 40mm | 15mm | 33mm | 120g |
| Spartan® Plier Clamp Narrow Jaw | 220mm | 88mm | 55mm | 12mm | 56mm | 120g |
Download our data sheet as a PDF:
How to order
Call 01384 563 200 to order directly from us – the manufacturers.
