Malleable iron fittings have a wide variety of applications including in fire protection, plumbing, heating and ventilation.
We stock malleable iron fittings from Jinan Meide, the world’s leading brand of malleable iron fittings. We are proud to say:
- They are covered by the relevant international standards BS EN10242 and BS EN10143
- They are BSI kitemarked
- The male and female taper threads are formed to the British standard ISO 7.1 to ensure the best possible joint
- We can supply them in self colour or hot dip galvanised finishes.
The design test pressure for sizes 1/8” (6mm) up to 4” (100mm) is 100 bar. This is a hydrostatic test at ambient temperature. This applies to all fittings except for unions. Unions must withstand a test pressure not less than 1.5 x permissible working pressure at ambient temperature.
Contact our sales department for BIM modelling files, should you need them.
Technical information
Malleable taper thread socket

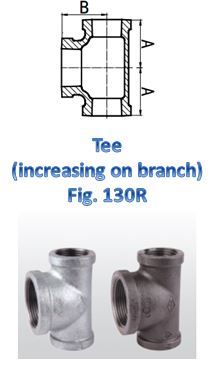

Malleable reducing tee
Malleable reducing socket
Malleable reducing pitcher tee
Malleable reducing hex nipple
Malleable Reducing Elbow 90°
Malleable reducing 2 sizes Tee
Malleable M/F Elbow 45°
Malleable M/F cone seat unions

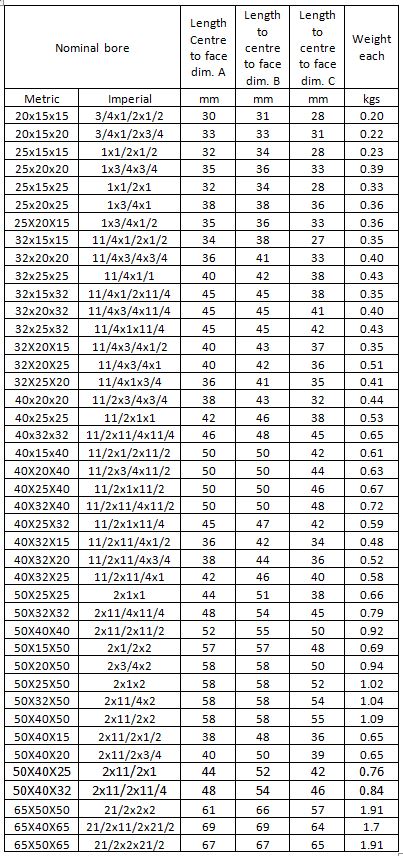

Malleable iron reducing tees
Malleable iron M/F 90° Elbow
Malleable iron female 90° elbows
Malleable iron bends
Malleable hollow and solid plugs
Malleable Hex Bush
Malleable female cone seat unions
Malleable equal tee
Malleable equal pitcher tee
Malleable equal hexagon nipple
Malleable equal cross
Malleable Elbow 45°
Malleable cone seat union elbows
Malleable Cap
Malleable Backnut
Galvanised compression coupling
Box quantities – Reducing tees
Box quantities – Equal Fittings

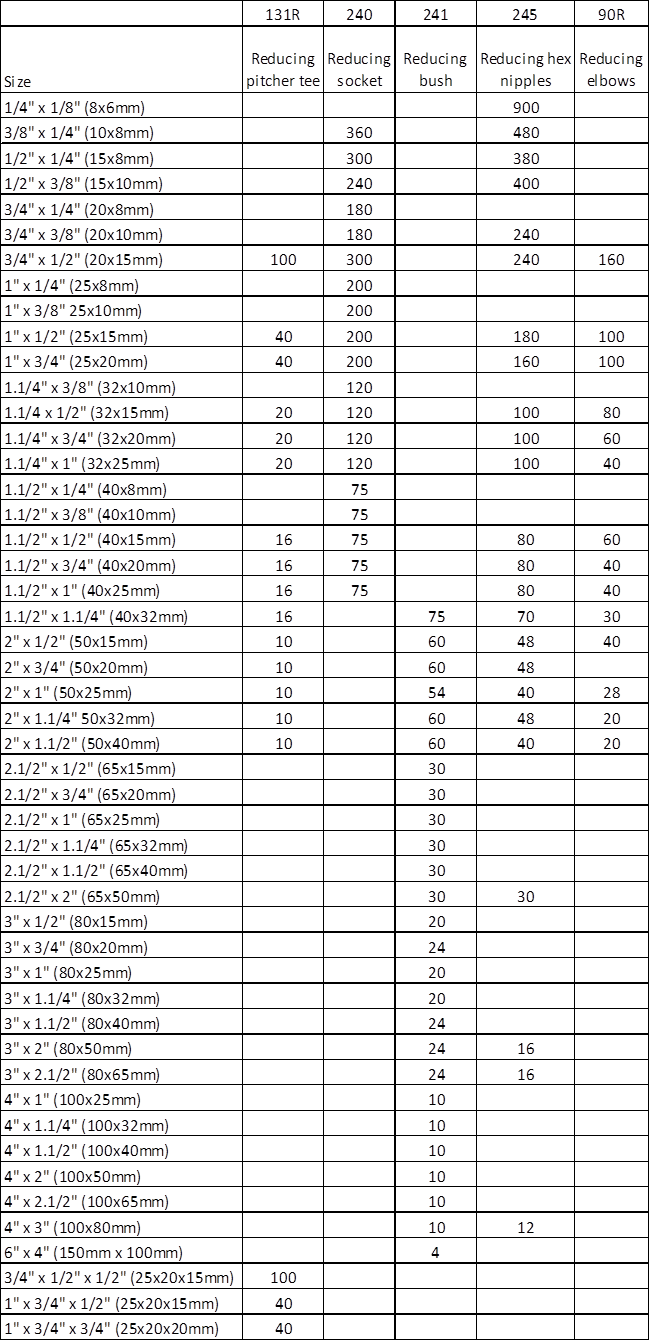

Box quantites – Reducing fittings
Here is the BSI kitemark licence. Please note that the PDF opens in a new tab:
